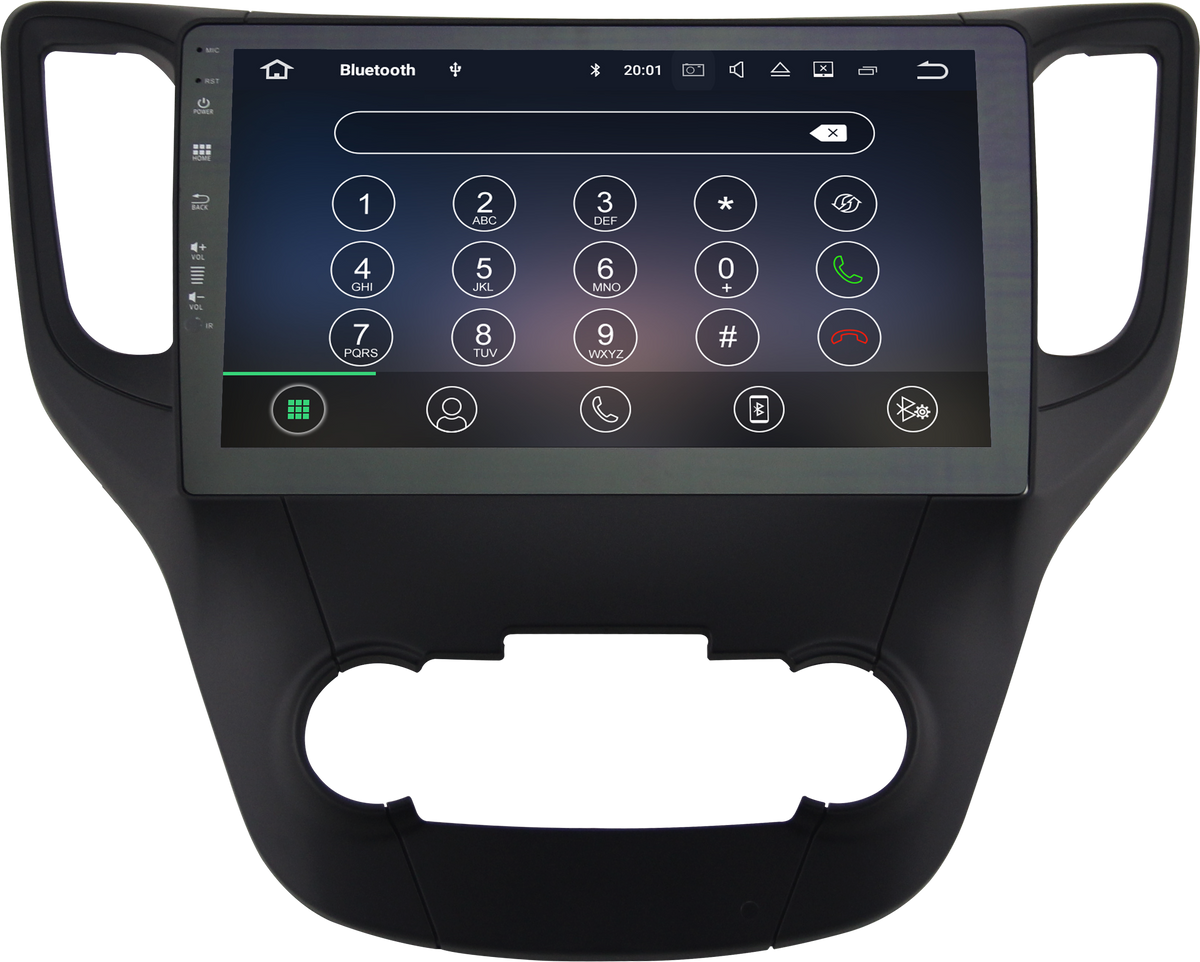

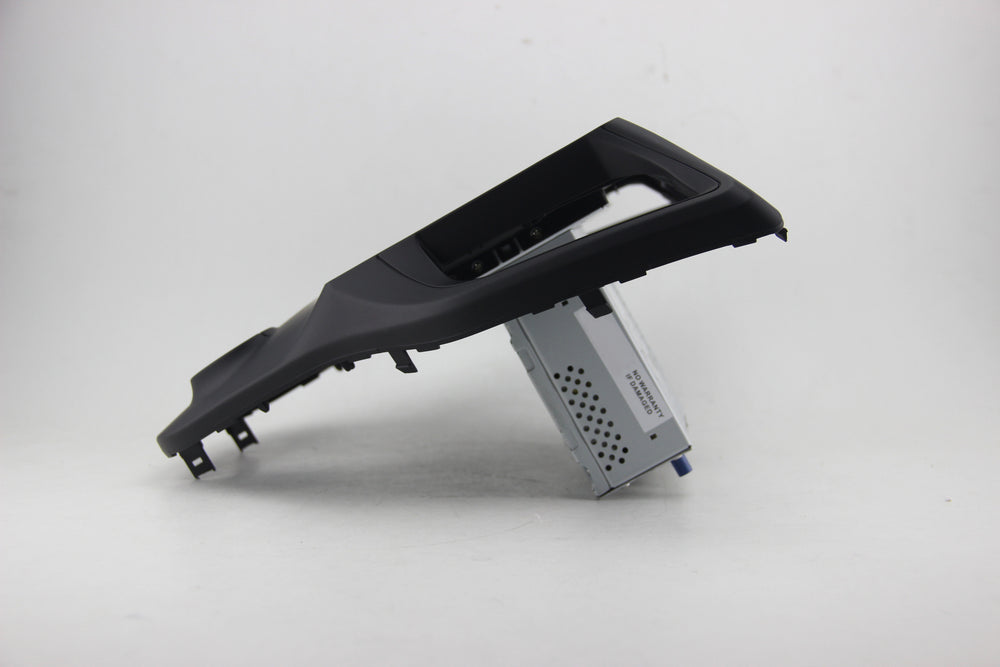

ZESTECH 9 inch single din GPS Navigation Android 10.0 system car+multimedia+stereo for Changan CS35
9 inch 1din Car DVD for Changan CS35
Android 10.0 Quad core 2+16/32GB
9 inch 1din Car DVD for Changan CS35
Android 10.0 Quad core 2+16/32GB
Selling Point
1) Operating System: Android 10.0
2) Hardware platform:MTK8227L, Quad Core ARM A9 4*1.4GHz
3) Memory Storage Capacity:RAM: 2GB ROM: 16/32GB
4) Screen Size: 9 inch, Resolution:800*480
5) Touch screen: Capacitive Screen Multi-point touch
6) MTK8227L Processor
7) High temperature resistence,can working at 85°C
8) Warranty:12 month,provide techinical support for whole life with free charge
9) Screen material:A grade,high quality
10) Radio sound: high reduction rate of original sound
Important Note:
1.Before you place the order, please note your car model and year and show us the picture of your car dashboard by message,we will check whether our device fit to your car or not. If you don't confirm to us these informations,we will send it out by default, it may not be compatible.Thanks for your understanding!
2.The installation will require a degree of expertise. If you have few of related experience,we urge you to have professional install the item.Our warranty service doesn't cover damage to the item caused during installation by non-professionals.
3.After you place the order,if we have the device in stock,we will send it out within 2 working days.BUT,we have not it in stock some time,we need 4-5 working days to be production and testing.In such a situation,we will send it out within 7 days.
1.0 User Interface:

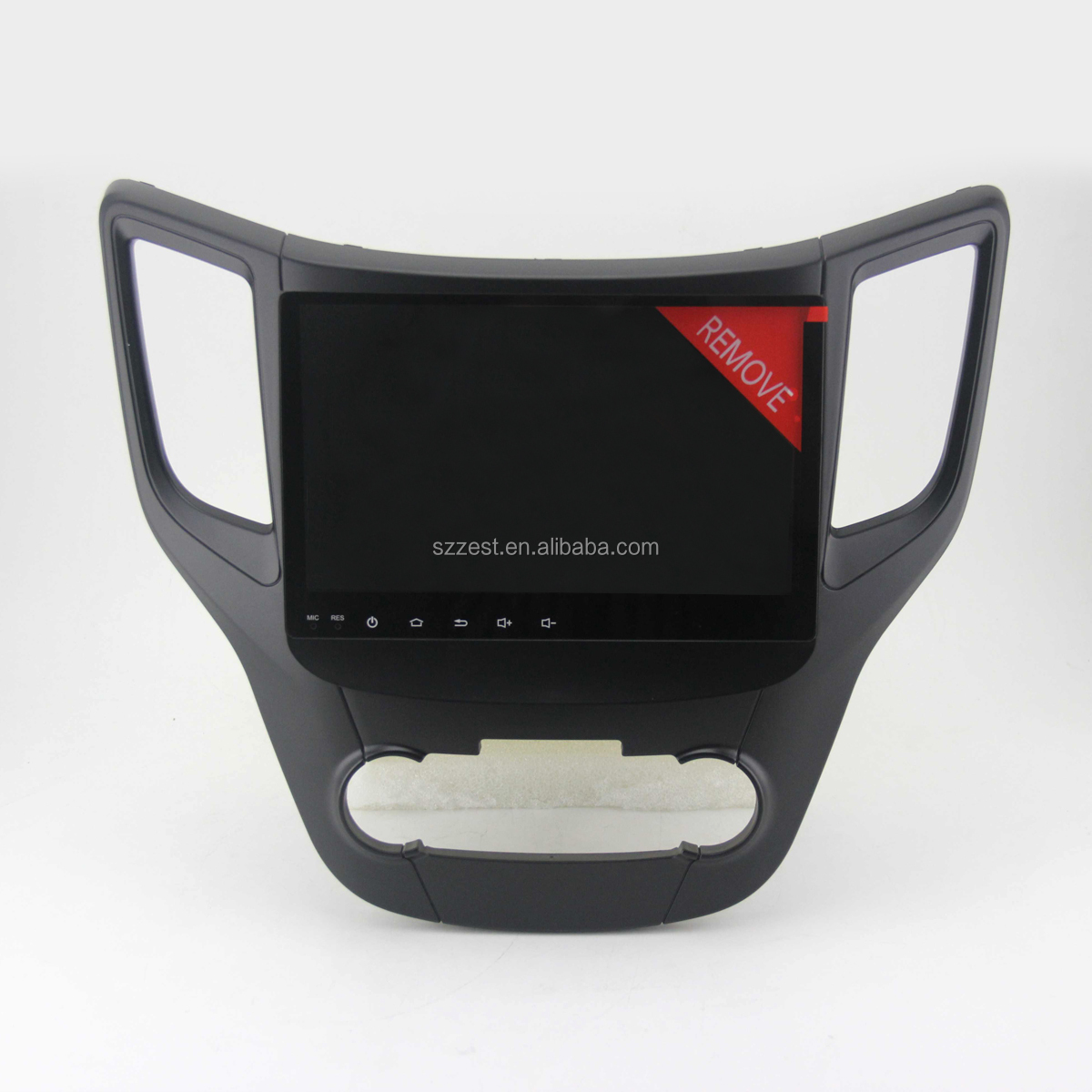

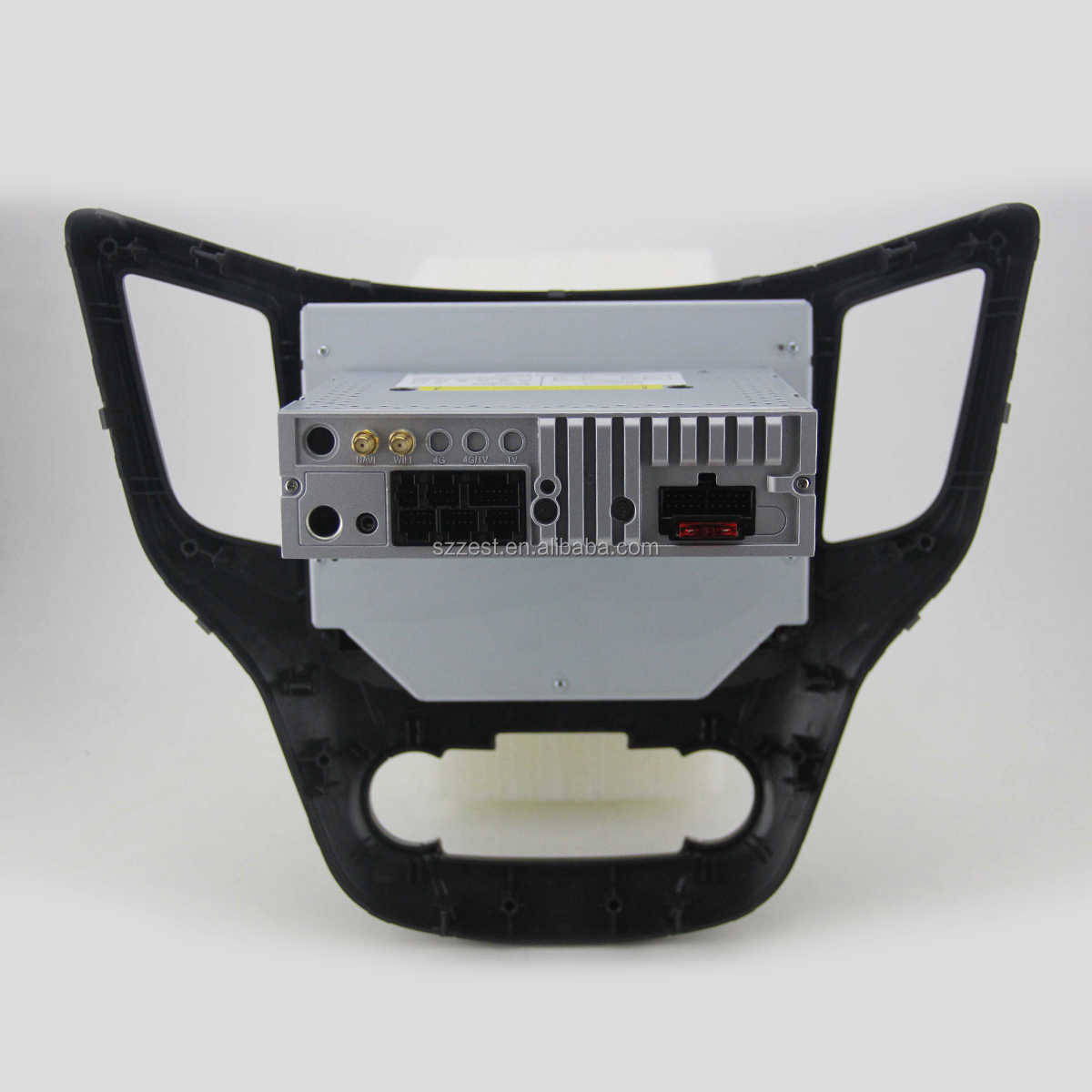

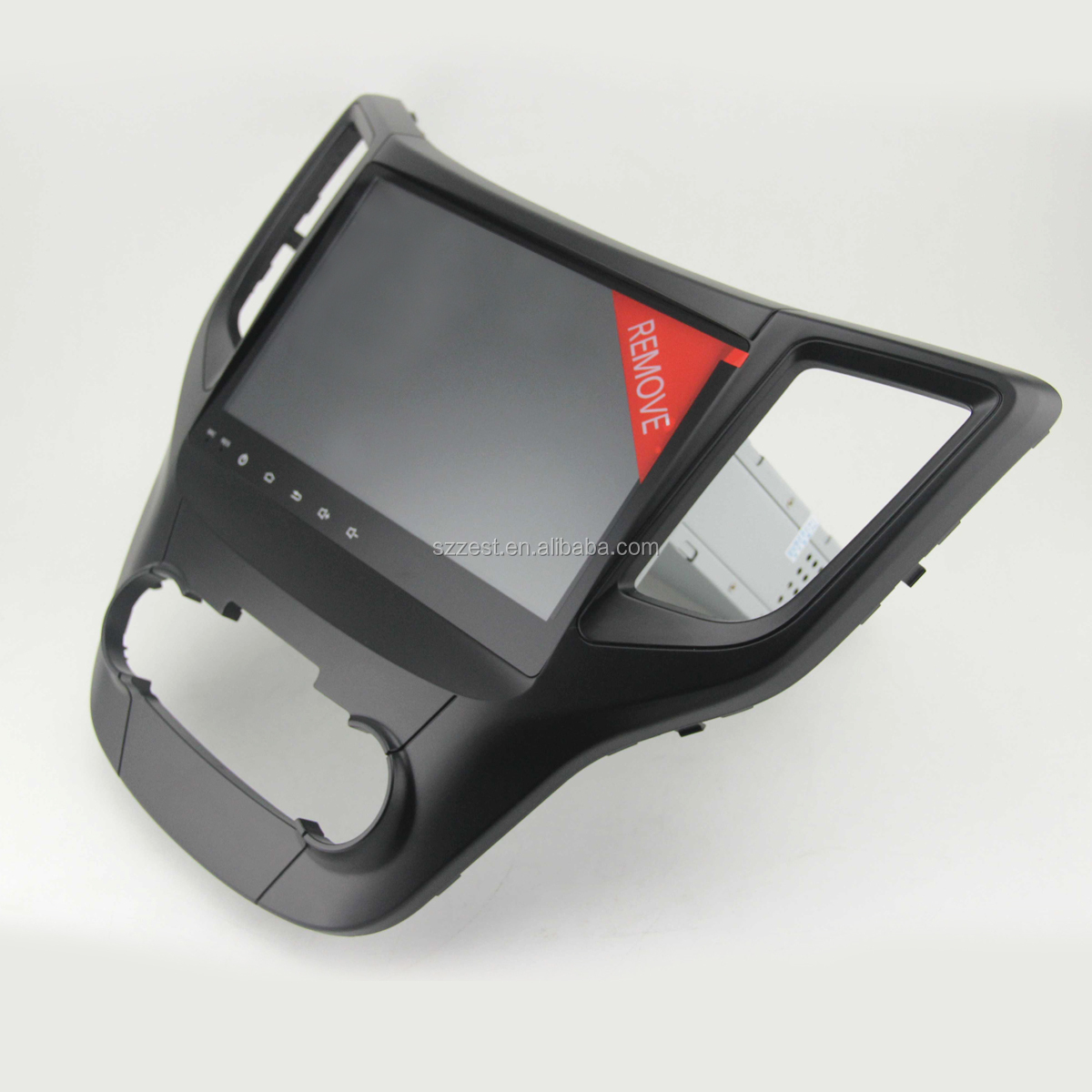

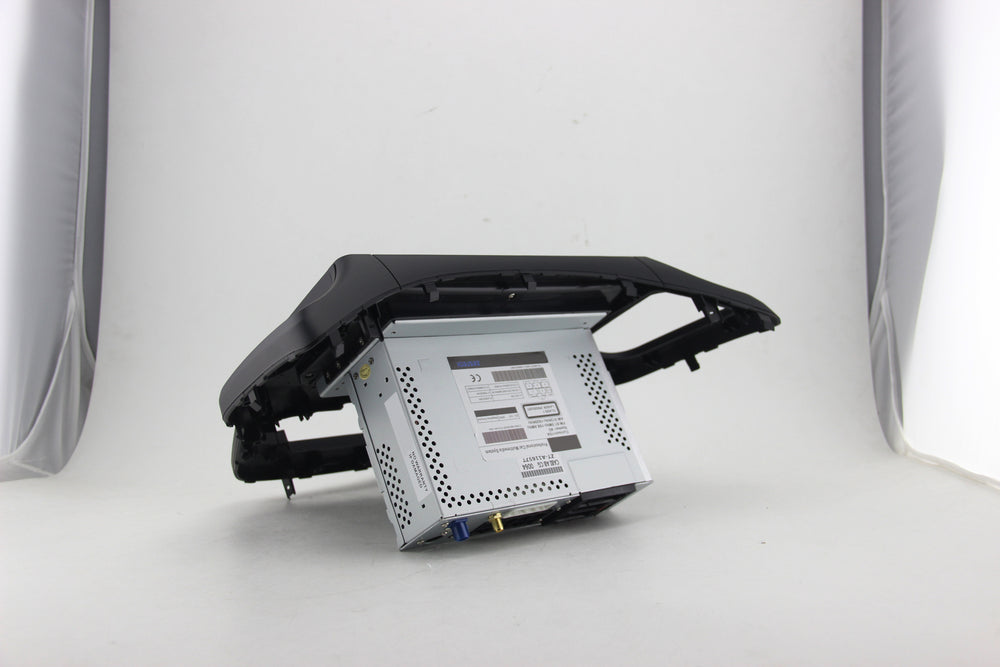

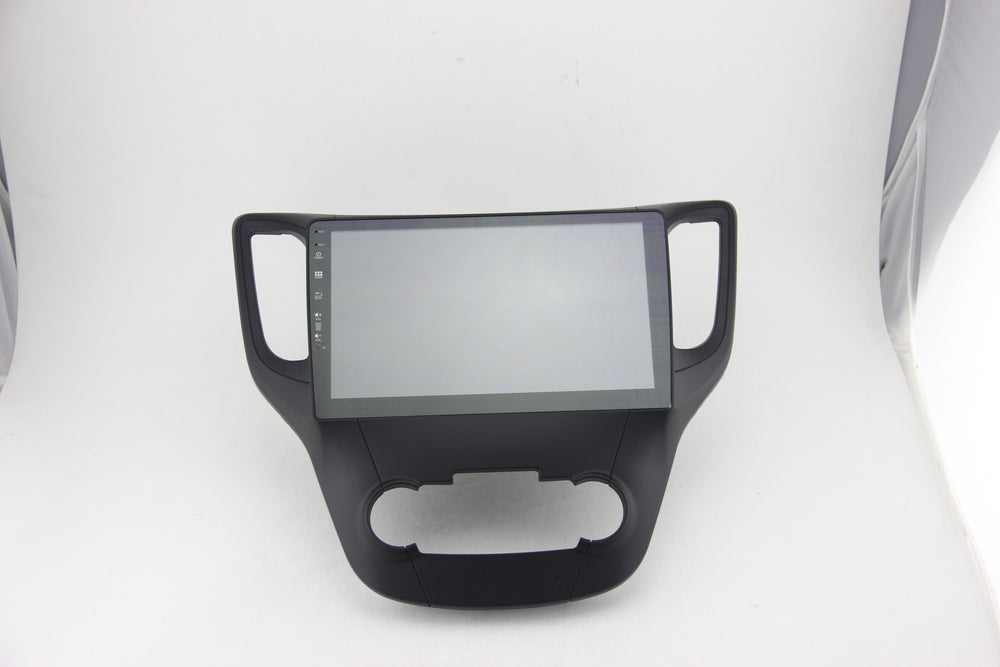

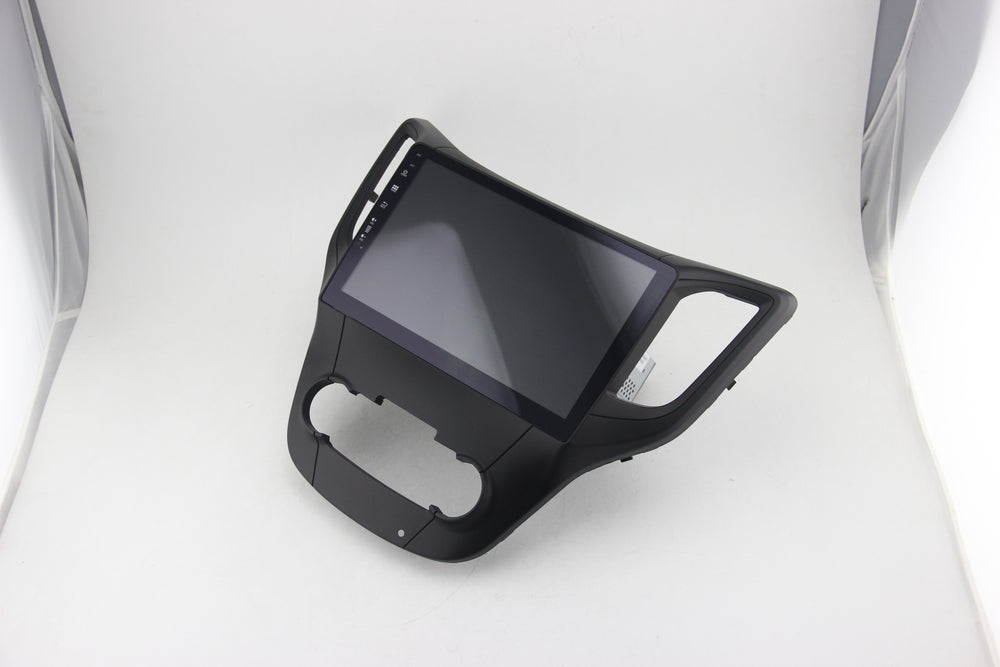

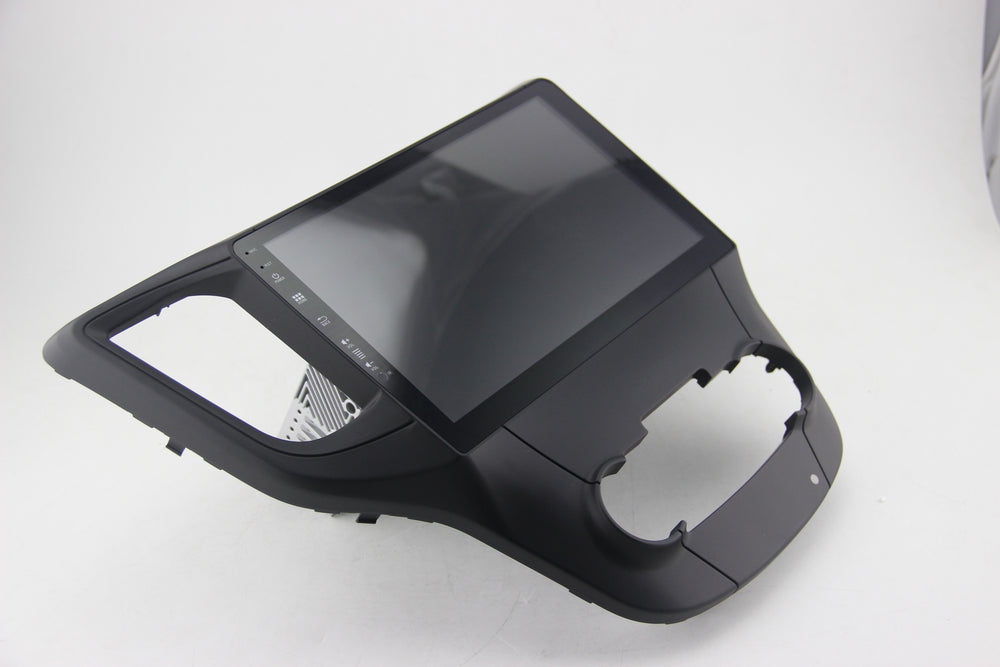

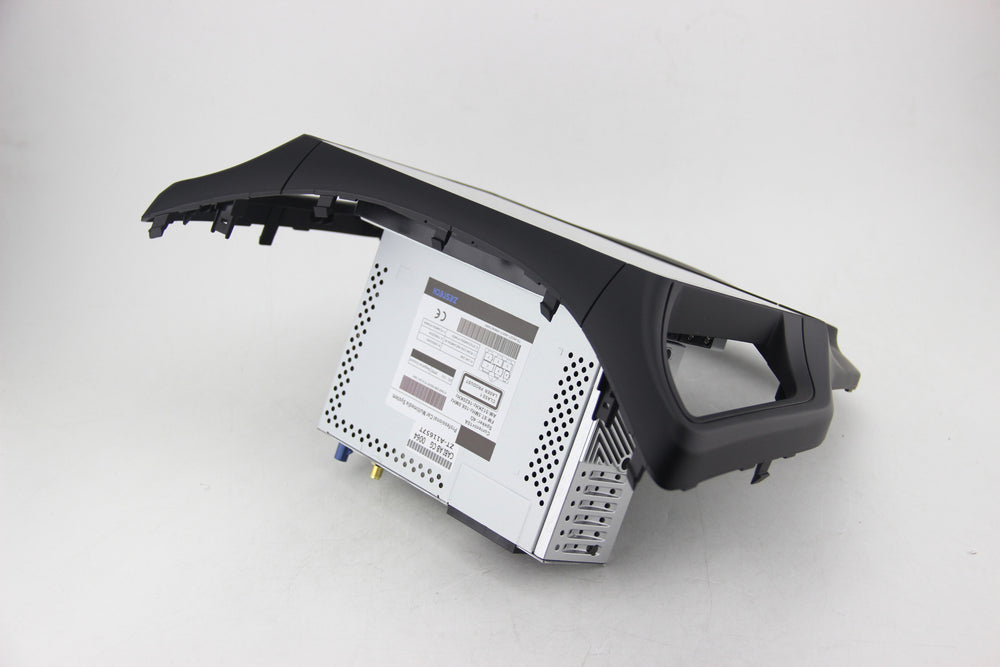

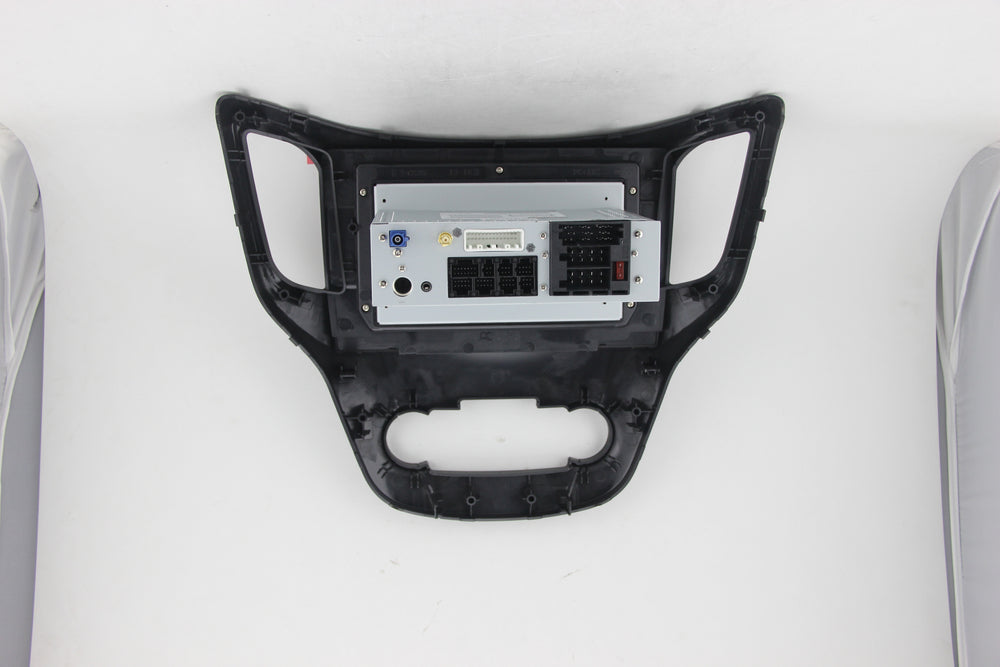

2.0 Pictures:

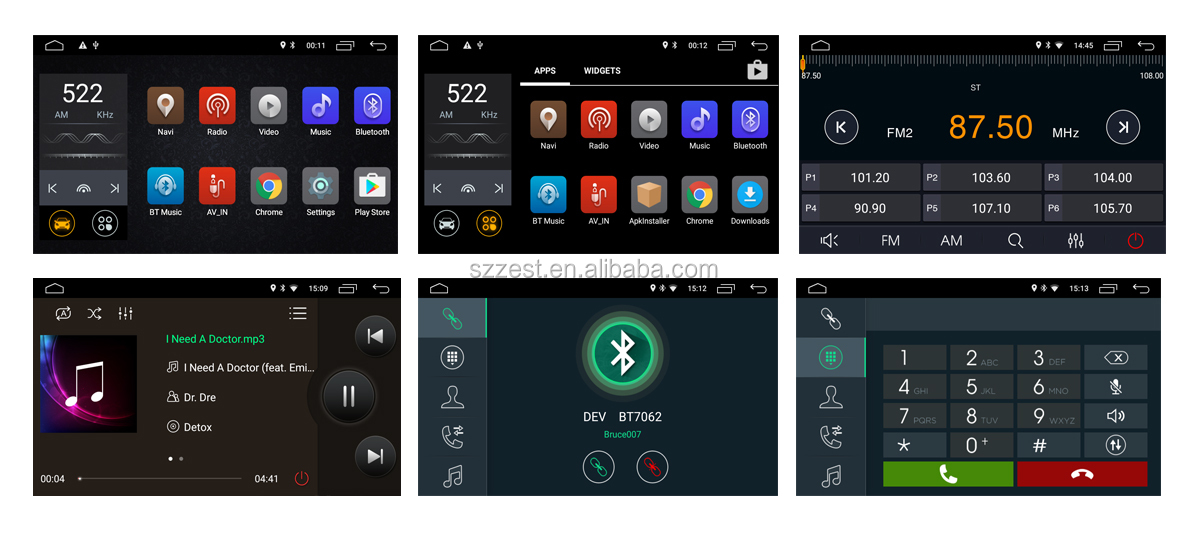

User Interface:

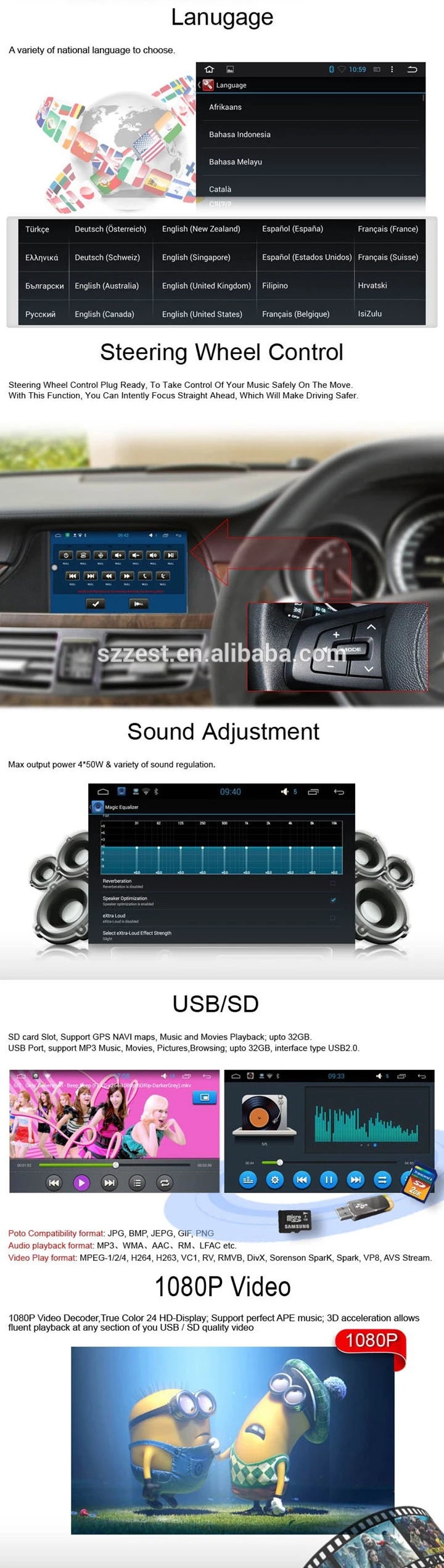

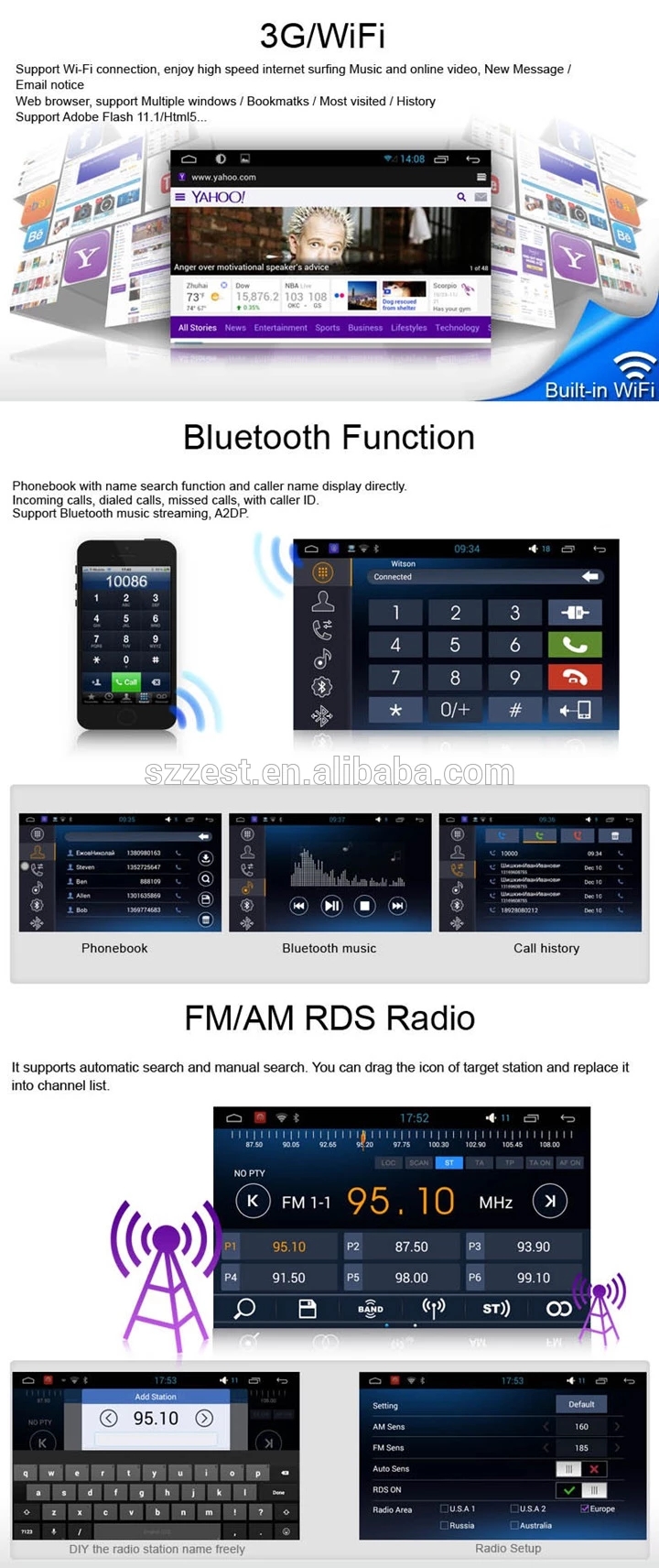

3.0 Functions:
4.0 Specification:
| Operation System | Android 10.0 |
| Processor | MTK8227L, Quad Core ARM A7 4*1.4GHz |
| Ram | 2GB DDR3 |
| Rom | 16 / 32 GB |
| Resolution | 1024*600 |
| Radio | FM1, FM2, FM3, AM1, AM2 |
| GPS | MT6625 |
| LCD Screen | 6.2-10.1inch, Capacitive Multi Touch Screen |
| TFT Driver IC | AC8227L |
| Amplifier IC | TDA7388 / TDA7851 |
| DVD Decord IC | SC3590 USB DVD |
| Radio IC | TDA7786 |
| Maximum output | 4*45W |
| Bluetooth | MT6625 bluebooth5.0 |
| Vedio Decorder | HD 1920*1080 |
| WIFI | Build-in |
| DVR | Support |
| Vedio In-put | Front and Back Camera, Aux |
| Audio In-put | AUX-L, AUX-R (2 Way) |
| Vedio Out-put | Vieo1, Video2 (2 Way) |
| Audio Out-put | FL, FR, RL, RR and Subwoofer (5 Way) |
| USB Connector | USB1, USB2 |
| USB Device Support | 2TB Hard Drive |
| SD Card Connector | SD Card And Map Card (2 Way) |
| Multi media Parameters | |
| Audio Format | MP3, WMA, AAC, RM, FALC etc. |
| Vedio Format | MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Spark, VP8, AVS Stream etc. |
| Picture format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| Frequence Range | FM: 76.0MHz-108.0MHz/AM: 522KHz-1620KHz |
| Radio Area | Asia, European, Russian, America North, American South, Japan |
| DVD Parameters | |
| Vedio Out Range | 1.0V-1.2V(75Ω) |
| Compatible | DVD/DIVX/MP4/MP3/MP2/VCD |
| Amplifier Parameters | |
| Testing Voltage | 9.5-16.5V |
| Maximum Out-put Voltage | 4*50W |
| GPS Parameters | |
| Map Support | Android Map |
| Map Type | Navitel, iGO etc. |
| WIFI Parameters | |
| Voltage Support | Vcc_3.3V |
| Support Agreement/Standard | IEEE802.11B/g/n compatible WLAN |
| Type | USB2.0 |
| Frequency Range | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
| Optional Function | |
| TPMS, USB Connector For DVR/1080P, TV Type: ISDB-T DVB-T | |
Packing: 1pcs in a box, 2pcs in one carton.
Carton size: 56*49*38 cm (2 pcs)
Box size: 48*28*36 cm (1 pcs)
Guaranty time: 1 year warranty for all of our products.

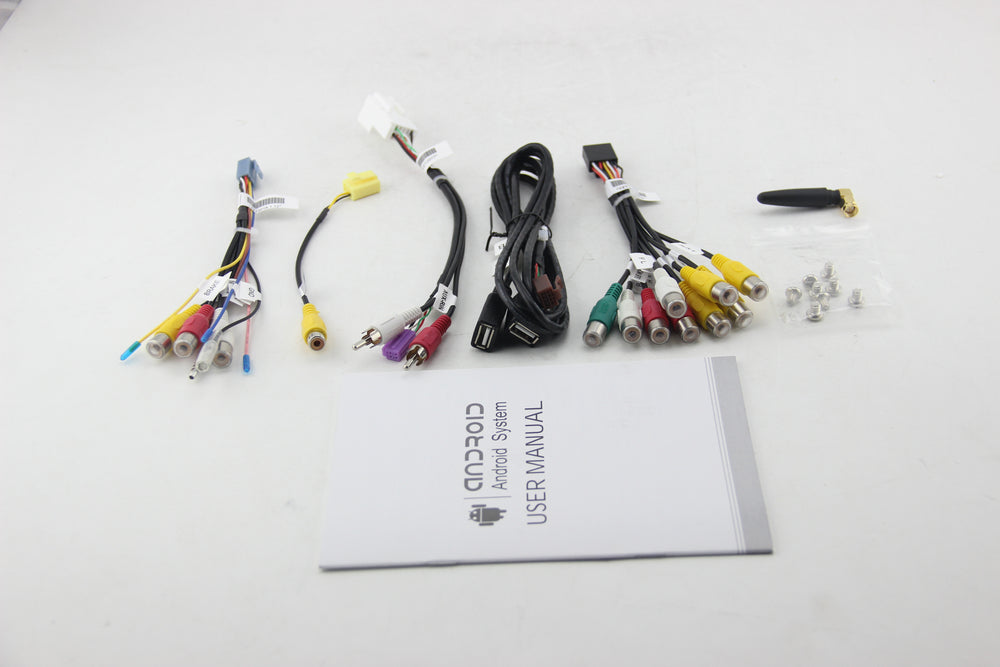

General packages are as follow:
Q: Does the model is fit for my car ?
A: Just need show us your car's console picture to confirm.
Q: How to install ?
A: Just connect and plug,don't need to change any wire. Also we have User Manual guide you.
Q: How to contact you ?
Any inquiry or question, please contact me by Email, Skype, Whatsapp or others.
