ZESTECHCarRadio

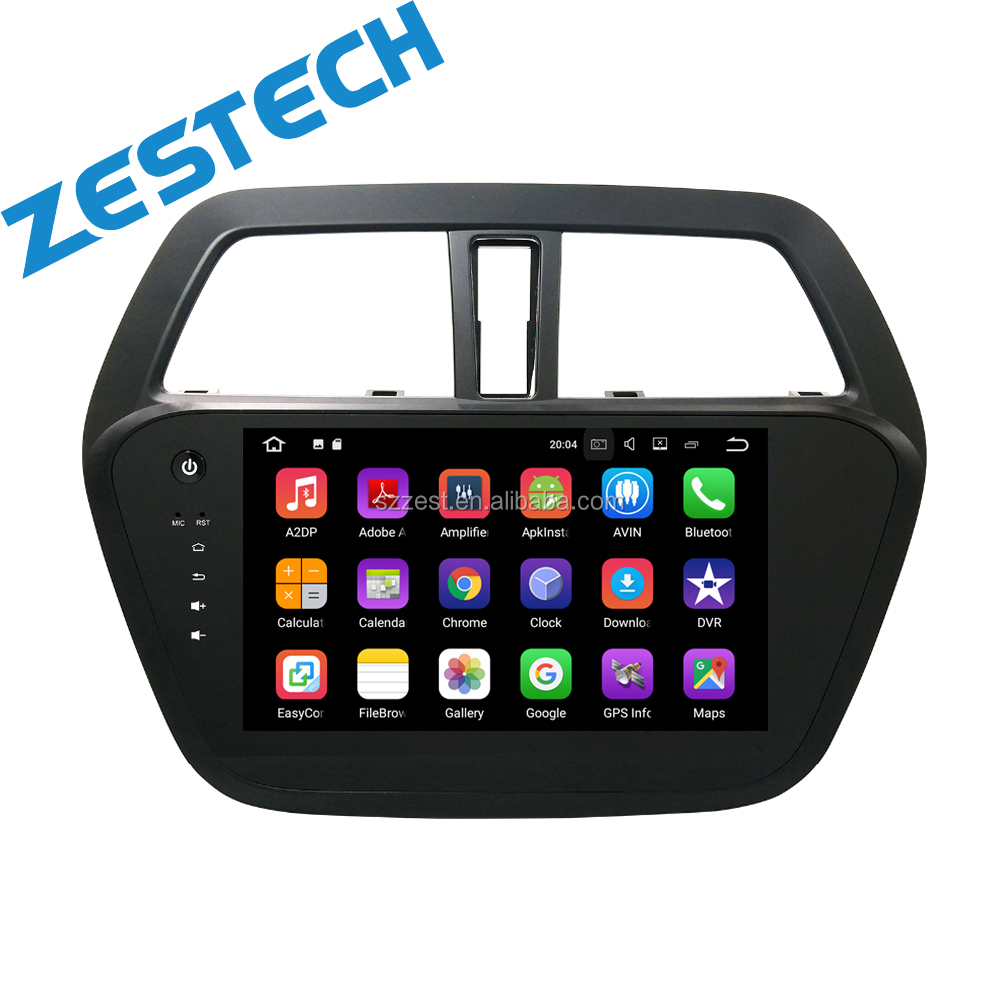

ZESTECH single din 9'' Car radio GPS Navigation Android 10.0 4+32GB WIFI BT SWC For Suzuki S-cross
ZESTECH
E-MAIL : Admin@szzest.com
ZESTECH 9 inch 1din Car DVD for Suzuki Scross Android 10.0 Quad core 2G+16/32G
Selling Point
1) Operating System: Android 10.0
2) Hardware platform: Rockchips PX30, quad core, cortex A35, 1.5GHz
3) Memory Storage Capacity: RAM: 4GB ROM: 16GB/32GB
4) Screen Size: 9 inch, Resolution:1024*600
5) Touch screen: Capacitive Screen Multi-point touch
6) Cortex-A35 Processor
7) High temperature resistence,can working at 85°C
8) Warranty:12 month,provide techinical support for whole life with free charge
9) Screen material:A grade,high quality
10) Radio sound: high reduction rate of original sound
Important Note:
1.Before you place the order, please note your car model and year and show us the picture of your car dashboard by message,we will check whether our device fit to your car or not. If you don't confirm to us these informations,we will send it out by default, it may not be compatible.Thanks for your understanding!
2.The installation will require a degree of expertise. If you have few of related experience,we urge you to have professional install the item.Our warranty service doesn't cover damage to the item caused during installation by non-professionals.
3.After you place the order,if we have the device in stock,we will send it out within 2 working days.BUT,we have not it in stock some time,we need 4-5 working days to be production and testing.In such a situation,we will send it out within 7 days.

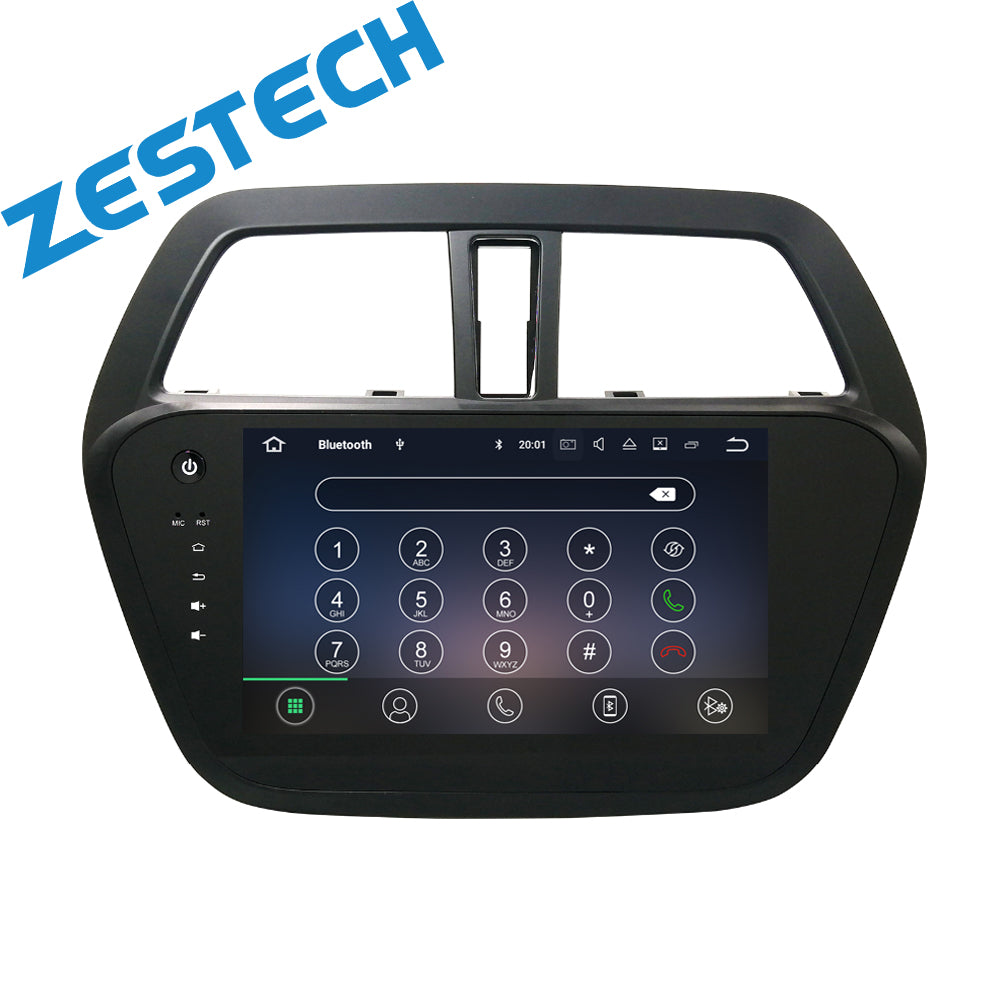

1. Product Pictures:

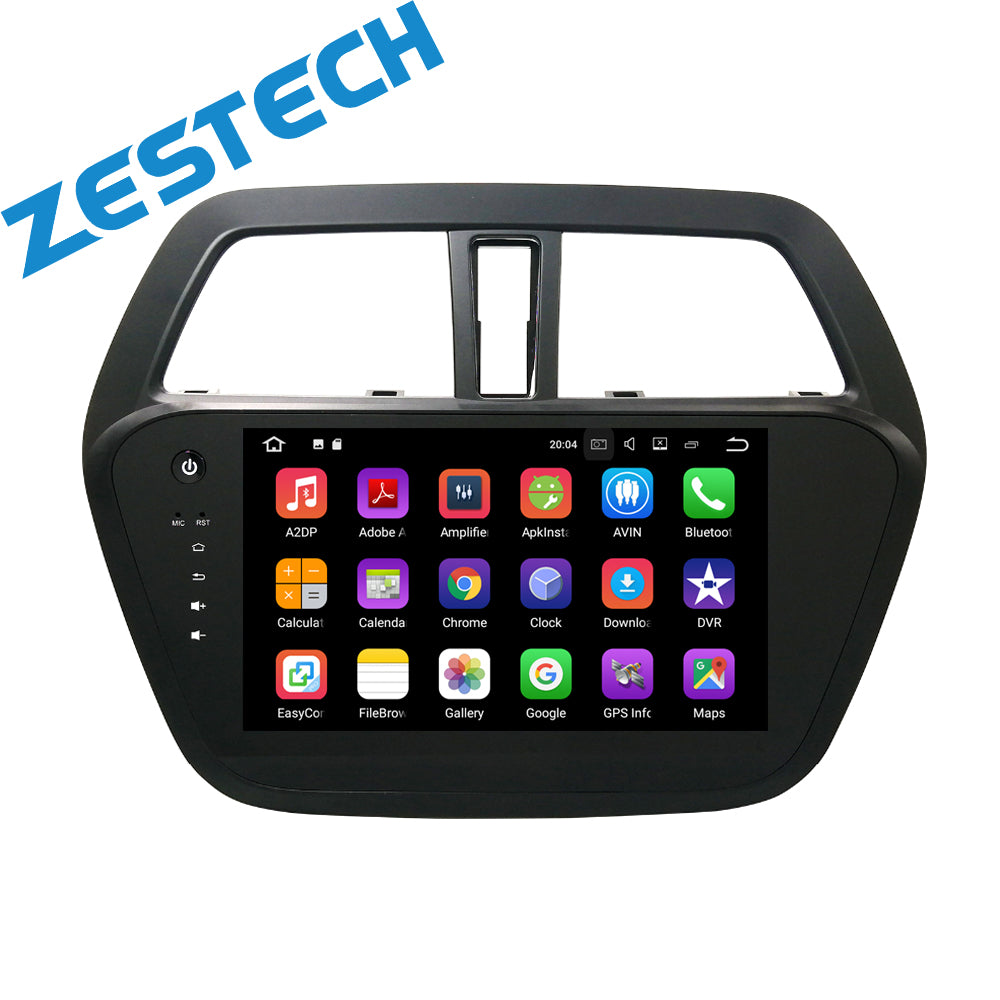

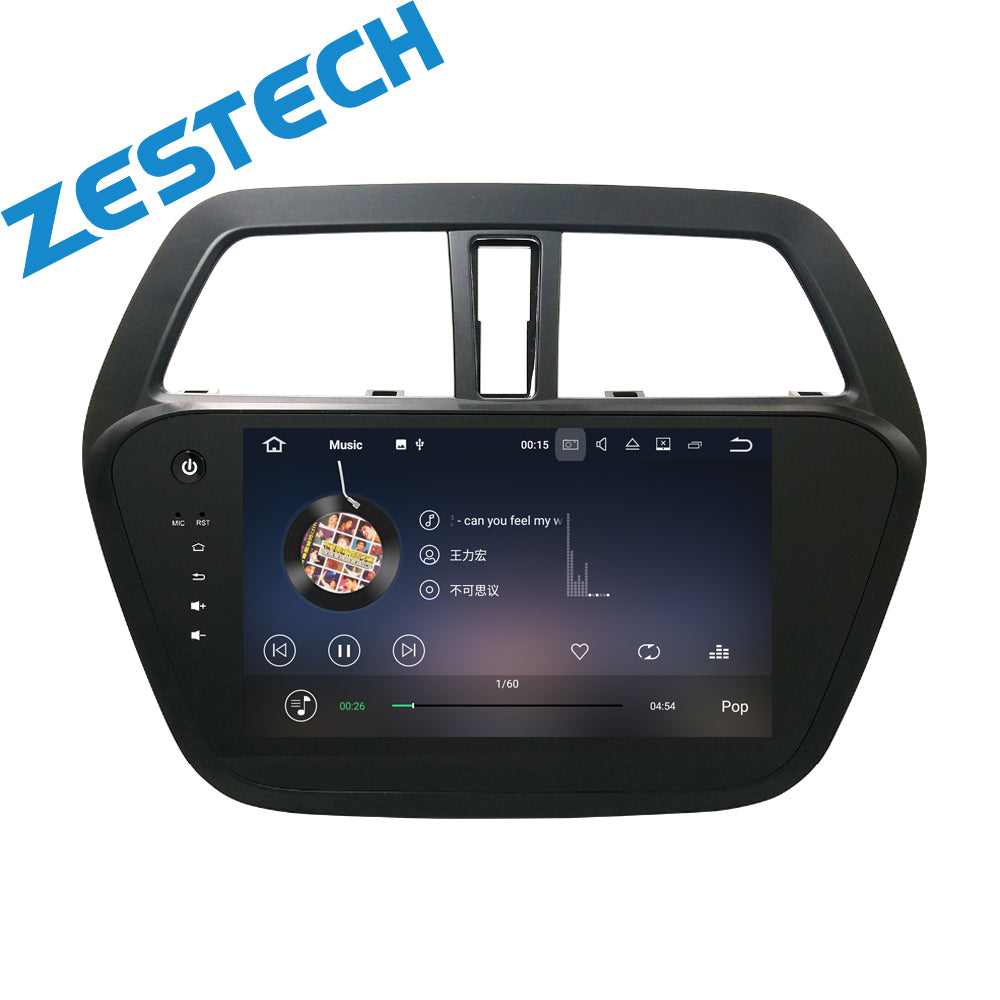

2. User Interface:
3. Specification:
| System | Android 10.0 |
| CPU | PX30, quad core, cortex A35, 1.5GHz |
| GPU | Mali-G31 MP2 |
| RAM/ROM | 2GB+16/32GB |
| Display Type | Capacitive multi-touch screen |
| Screen resolution | 1024*600/800*480(below 7inch) |
| Language | English, French, German, Spanish, Portuguese, Russian, Arabic, Turkish , Italian etc. |
| Google service | Playstore, Gmail, Google maps etc. |
| DVD/CD | High temperature laser head |
| Radio Chip | TDA7786 |
| Radio Tuner | FM, AM, RDS,TMC(optional) |
| Radio response bandwidth | AM: 520-1700 Hz FM: 87.5-108.5MHz |
| WiFi | 802.11 b/g/n |
| GPS | Built-in GPS navigation system, GPS/GLONASS/BDNS |
| Amplifier | TDA7851, 4* 45 Watts |
| EQ mode | Classic, Rock, Pop, Jazz theater/scene/teahouse etc. |
| Mirrorlink | YES(support Android phone & iPhone) |
| Bluetooth | BT5.0, Bluetooth music, phonebook, hands free |
| External Microphone | Optional |
| CANBus | Optional |
| Steering wheel control | YES |
| Image format | JPG, JPEG, GIF, BMP, PNG etc. |
| Audio format | MP3, WMA, AAC, RM, LFAC etc. |
| Video format | MPEG-1, MPEG-2, MPEG-4, H264, H263, VC1, RV, RMVB, DivX etc |
| Audio input | 1* AUX |
| Audio output | RCA4.1 |
| Video input | AUX/CAM/DVR input |
| Video output | 2* video output(support headrest monitor) |
| USB | Support Max 32GB USB flash drive, 1TB hard disk. |
| Micro SD | Support Max 32GB |
| 4G dongle | External, support Huawei & ZTE brand |
| Rear view camera input | Support |
| Extended functions | DVB-T/DVB-T2/ATSC/ISDB-T(built-in/external), 4G, TPMS, DVR, TMC, OBD, DAB etc. |
| Work voltage | 9V ~ 16V |
| Temperature | |
| Operation temperature | —20℃ ~ 80℃ |
| Storage temperature | —30℃ ~ 85℃ |
4. Functions:
Packing: 1pcs in a box, 3pcs in one carton.
Carton size: 69*41*33 cm (3 pcs)
Box size: 39*23*31 cm (1 pcs)
General packages are as follow:
Q: Does the model is fit for my car ?
A: Just need show us your car's console picture to confirm.
Q: How to install ?
A: Just connect and plug,don't need to change any wire. Also we have User Manual guide you.
Q: How to contact you ?
Any inquiry or question, please contact me by Email, Skype, Whatsapp or others.
